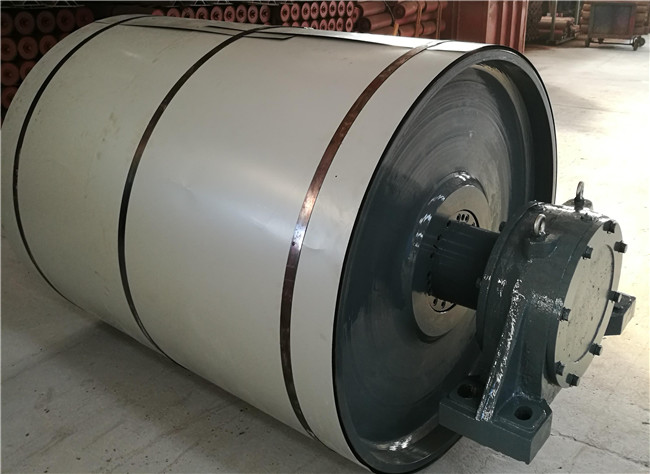

PVC Coated 300m/Min Conveyor Drive Pulley Double Strips Return Roller

Name: PVC Coated 300mMin Conveyor Drive Pulley Double Strips Return Roller
Brand: QINYI
Price: 1 USD

Wholesale PVC Coated 300m/Min Conveyor Drive Pulley Double Strips Return Roller from china suppliers

Brand Name : QINYI

Model Number : Belt Conveyor Drive Pulley

Certification : CE / ISO / FDA / SGS / TUV

Place of Origin : China , Cangzhou

MOQ : 5 ton

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 5000 Ton/Tons per Month

Delivery Time : 10~15 days

Packaging Details : Steel-strcuture pallet or wooden case

Product name : Belt Conveyor Bend Pulley

Application : Coal mining industry, cement, harbor, crushing and screening ind

type : Fire retardant, non fire retardant

Retainer : Single strips, double strips

Belt material : Rubber Plastic,POM/PP/PVC/PU/Rubber

Dimension(l*w*h) : Customized Size,2500*600*700mm,1400mm*800mm*400mm

Type : Vibrating Conveyor,flexible roller conveyor,Slat Conveyor

Warranty : Unavailable,12 Months,12~36 Months

Contact Now

PVC Coated 300m/Min Conveyor Drive Pulley Double Strips Return Roller

Wholesales Drawing Drive Conveyor Belt Plastic Pulley Drum Return Roller

Conveyor Pulley , called as conveyor roller , is one of the most important parts for belt conveyors; It can be designed at any point in the conveyor; It can be divided to drive pulley, return pulley , which are widely used in tail and head part of the conveyor; For a overland belt conveyor (Large inclined belt conveyor), it requires one drive pulley but many return or flour pulleys;

The pulleys are mounted on shafts that engage the bearings and drive mechanisms used to support thepulley and power the belt. They are designed for use on belt conveyor systems as a means to drive, redirect, providetension to, or help track the conveyor belt.

1. High efficiency The combination of new high efficiency motor and high precision gear makes the best performance.

2. High speed From 1m/min to 300m/min

3. Low noise Noise levels were reduced by 10% compared to conventional products.

4. Save space and time Simplified installation, easy maintenance, short design time, saving time of procurement and assembly

5. Maintenance-free

our conveyor Timing Belt pulley surface can be made in :

1) steel smooth surface conveyor bend pulley used for low-power, small belt width and dry working condition;
2) rubber smooth surface conveyor bend pulley;
3) herringbone rubber surface conveyor bend pulley - coefficient of friction, slip resistance and good drainage;
4) diamond rubber surface lozenge conveyor bend pulley for bi-directional running conveyor;

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

conveyor pulley Description

Model	TYD75 Conveyor Pulley
Material	Stainless Steel, Galvanized carbon steel
Pulley Diameter	320, 400, 500, 630, 800,1000, 1250mm
Conveyor Belt Width	500-2000mm
Power Range	1.5, 2.2, 3, 4, 5.5, 7.5, 11, 15, 18.5, 22, 30, 37, 45 kw
Velocity of pulley surface	0.8 ~ 4.0 m/s
Rubber Thickness	6-12mm
Surface	smooth steel / rubber lagging
Application	Coal mining, Harbor, steel industry, cement industry and so on.

Diameter	60-219mm
Length	100-3500mm
Tube	Q235(GB)
Shaft	45# steel(GB) equal to C45
Bearing	Single & Double Row Deep Groove Ball Bearing 2RZ&2Z wigh C3 clearance
Grease	Lithium soap type grease,grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal
Lubrication	Grease is Lithium soap type grease with Rust Inhibitors
Welding	Mixed gas shielded arc welding end
Painting	Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

PVC Coated 300m/Min Conveyor Drive Pulley Double Strips Return Roller

Magnetic electric motor pulley:

1. Simple and compact structure, small occupied space.

2. Good sealing, suitable for workplaces with large dust concentration and wet and muddy.

3. Easy to use and maintain, safe and reliable operation and long service life.

4. Low energy consumption and easy centralized control.

5. Can meet a variety of backstop, brake, rubber and other requirements.

PVC Coated 300m/Min Conveyor Drive Pulley Double Strips Return Roller
