50mm Dia Self Aligning Belt Conveyor Idler Roller For Cement

Product Categories
HEBEI QINYI CONVEYING EQUIPMENT CO.,LTD
Contact Now

50mm Dia Self Aligning Belt Conveyor Idler Roller For Cement

  • 1
  • 2
  • 3

Brand Name : QINYI

Model Number : Self-Aligning Steel Belt Conveyor Idler

Certification : CE / ISO

Place of Origin : cangzhou

MOQ : 10 Pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5000 Piece/Pieces per Week

Delivery Time : 10~15 days

Packaging Details : Steel-strcuture pallet or wooden box

Application : Chemical Industry, Grain Transportation, Mining Transport, Power Plant

Product name : transition idler, Belt Conveyor Roller Idler

Service : OEM Customized Services,fast delivery,prompt delivery

Bearing : etc or as requested,LYC SKF FAG NSK

Number of row : Double Row,Single Row

Pipe : Steel(Q235), Stainless Steel(201, 304), Rubber

Surface Treatment : Powder Coated, Spray Paint, Galvanized

Diameter : 50-219mm

Contact Now

Self Aligning Belt Conveyor Idler Roller For Cement

Product Description:


1. As the typical product in the gravity rolller series, it is widely applied, especially in the carton conveyring area. e.g airport luggage handling and logistics distribution center.
2. Precesion ball bearing polymer bearing housing , end cap form the bearing unit which is very important . It is not only for good looding but also further more the smooth and quiet running.
3. The end cap of roller resist dust and water splash well in operation environment.
4. The design of pwlymer bearing housing makes it able to operate in some special environment.
5. The lubrication method of bearing could be oil lubricating or grease lubricating as requirement
6. Suitable for the high speed conveying. Speed could vary according to diameter and length of roller, Max.speed up to 120m/min.
7. Semi-precision bearing for option, smooth running, be used for gravity roller conveyor in low speed(<30m/min)
8. Temperatue range: 0 to +40ºC

Main Features of Conveyor Self-Aligning Roller

When the position of the belt is changed from its center line on the same plane, the self aligning idlers can correct this condition.
There are three types of self aligning idler: blocking idler, friction idler and taper self aligning idler.
There are used both carrier and return section.
Layout 1 set per 10 sets at carrier section.
Layout 1 set per 6-10 sets at return section.


product design
Product Conveyor Roller
Material Q235 for Pipe, #45 for Shaft.
Diameter 60-219mm(60,76,89,102,108,114,127133,159,178,219,etc).
Length 100-3500mm.
Sealing Lithium Soap Type Grease, Grease Retaining Ineer Seal With Muti-stage Labyrinth and Retention Cap With Outborad Flinger Seal.
Bearing Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 Clearance.
Standard GB,DIN,ISO,CEMA,JIS.
Welding Mixed gas shielded arc welding end.
Painting Ordinary Painting, Hot Galvanized Painting, Electric Static Spraying Painting, Baked Painting.
Application Mining, Port, Cement, Steel, Metallurgy, Electric Power, Coal, Machinery and Other Industries.

Product Details:


1. Standard: GB/AS/CEMA/JIS/DIN.
2. Lift time: 30000-50000hours
3. Output: 500000 pcs/ year.
4. Warranty: One year.
5. Roller Diameter: 60-219mm.
6. Roller Length: 150- 3500mm.
7. Roller Pipe: Q235 carbon steel, with good state-of roundness and straightness,and the pipe will be machined before welding with the bearing house to ensure well-balanced rotation.
8. Shaft: Q235 or #45, made of cold-drawn bright round steel.
9. Bearing: Ball bearing C3 , HRB,SKF,NSK
10. Seals: Labyrinth seals, have a good water proof and dustproof.
11. Welding: Mixed gas shielded arc welding end.
12. Color: According to your requirement.
13. Surface: Powder coated /galvanized.

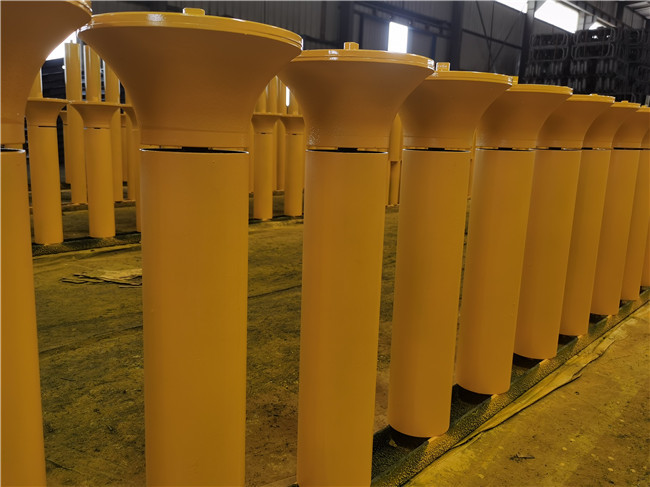

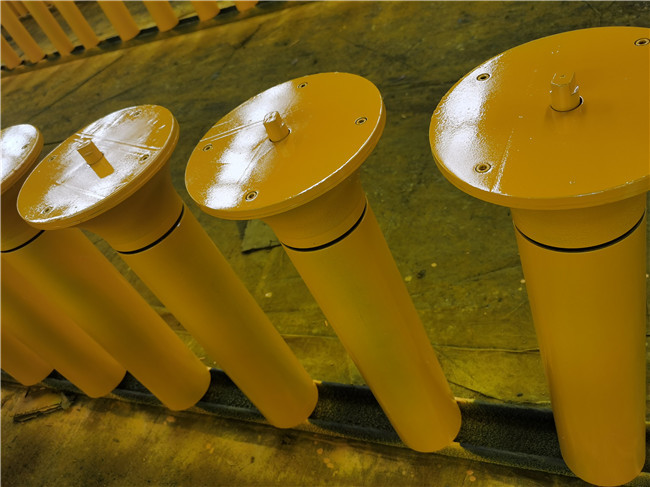

50mm Dia Self Aligning Belt Conveyor Idler Roller For Cement50mm Dia Self Aligning Belt Conveyor Idler Roller For Cement50mm Dia Self Aligning Belt Conveyor Idler Roller For Cement
